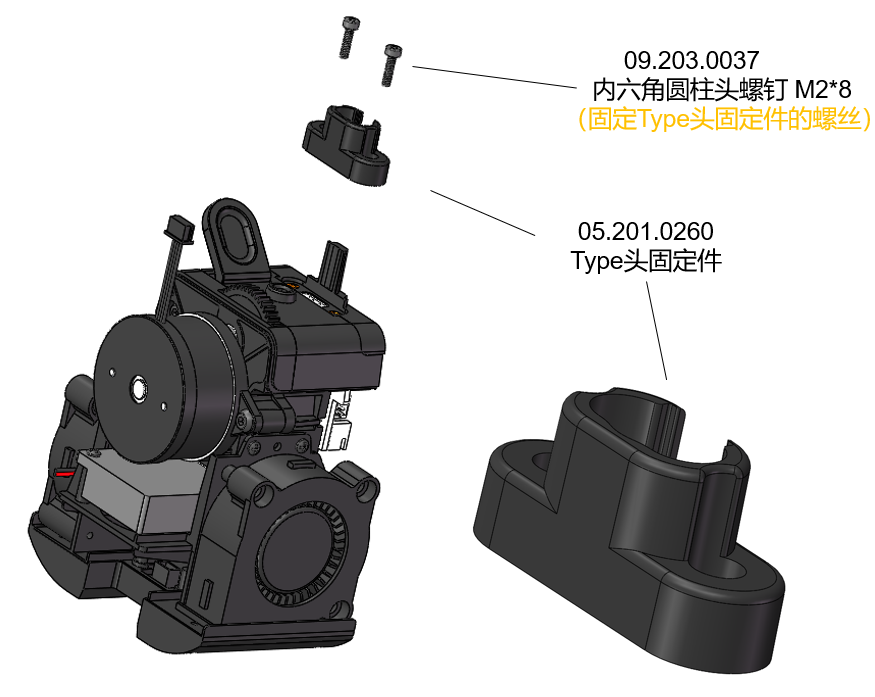

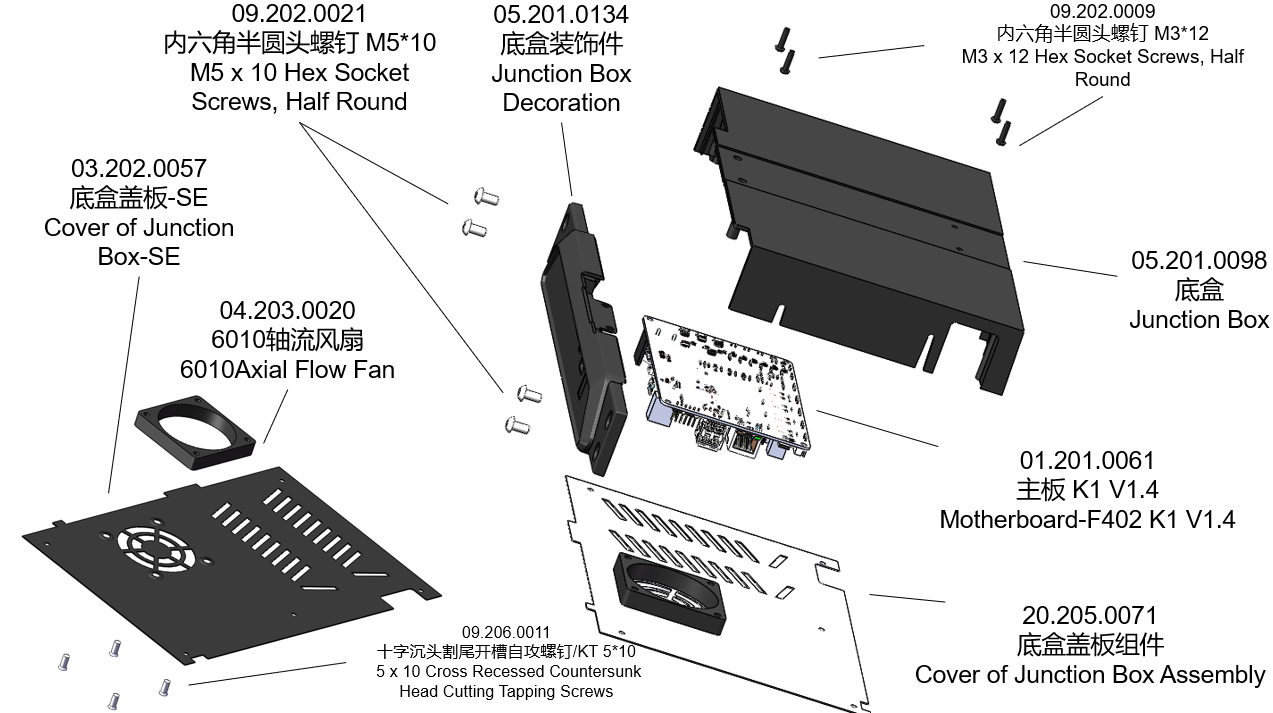

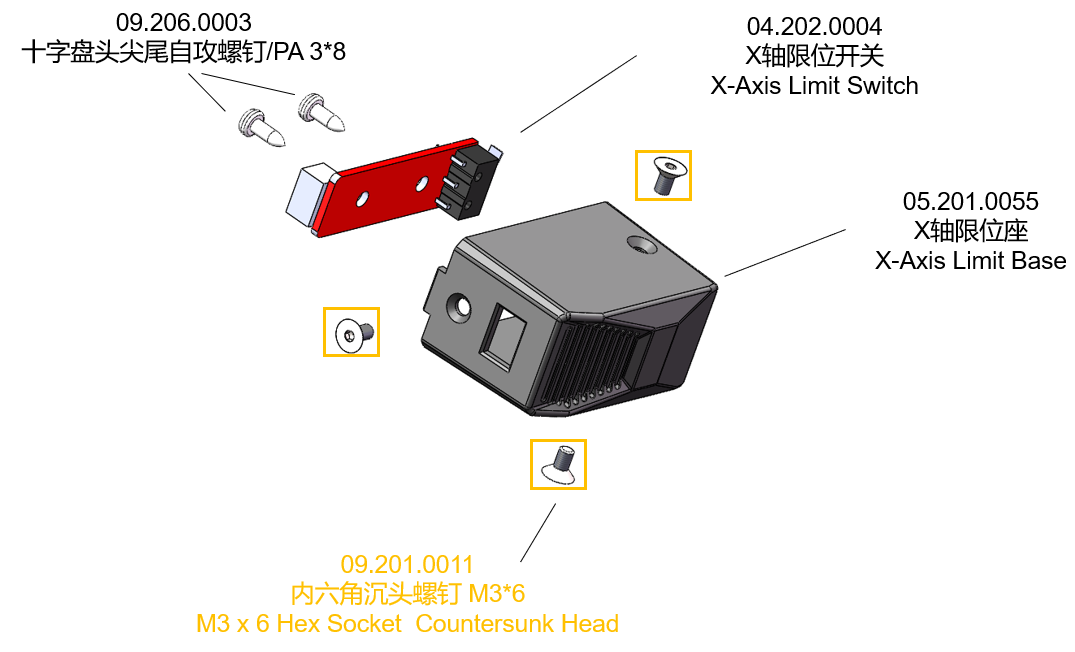

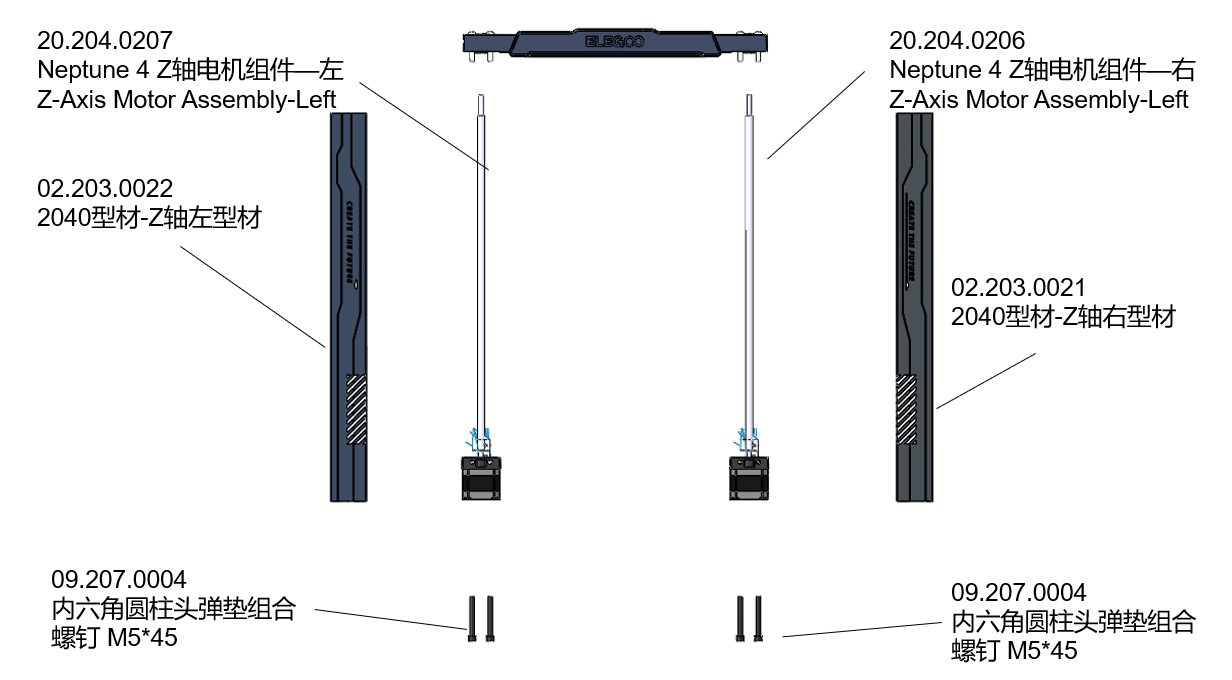

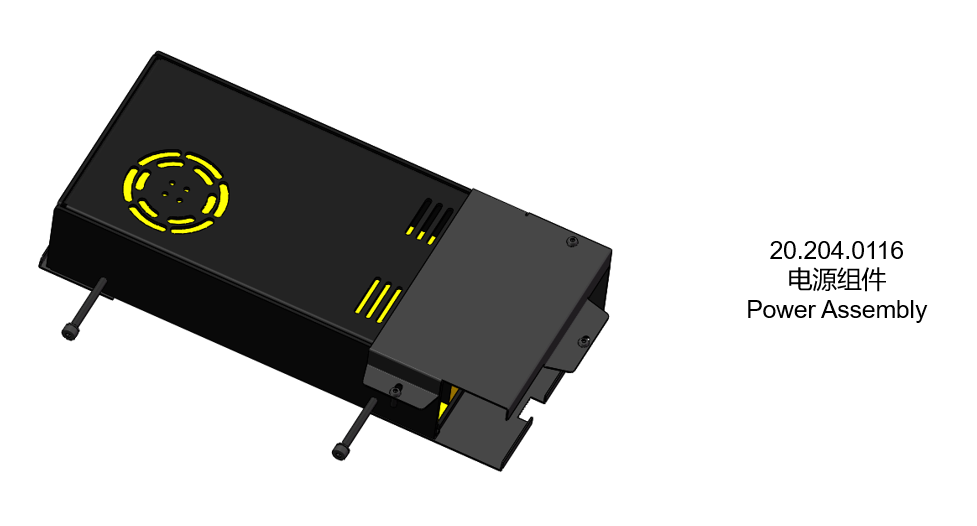

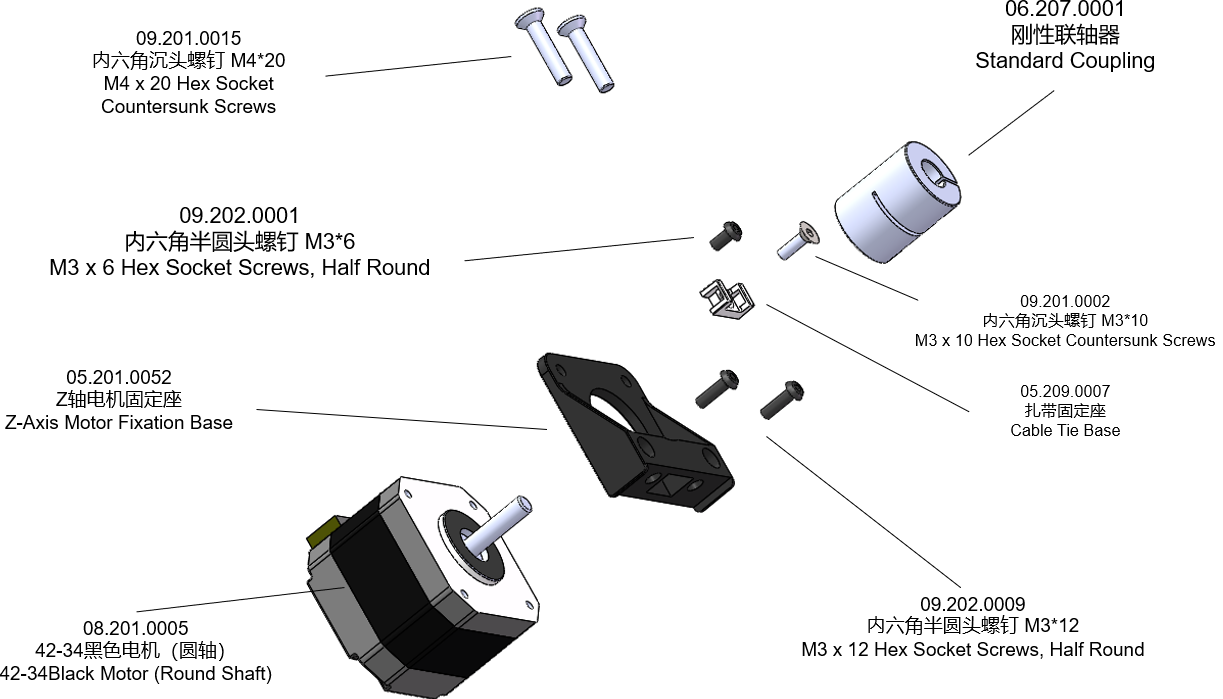

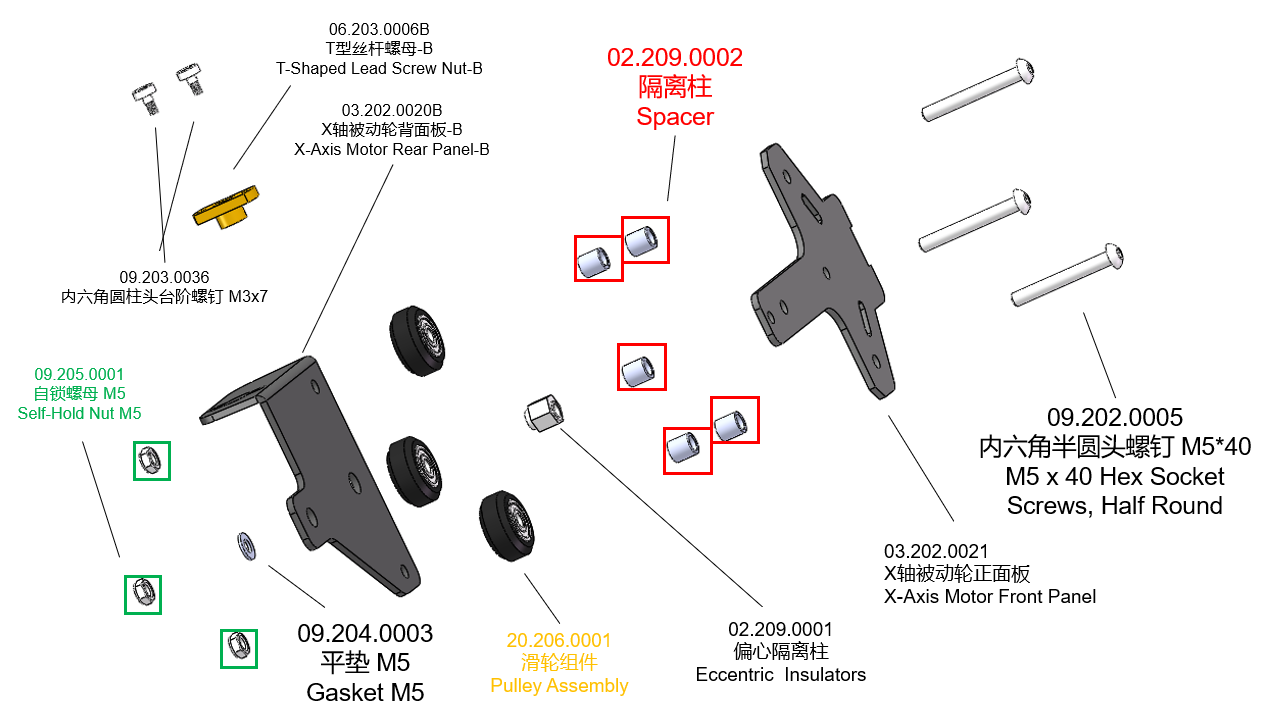

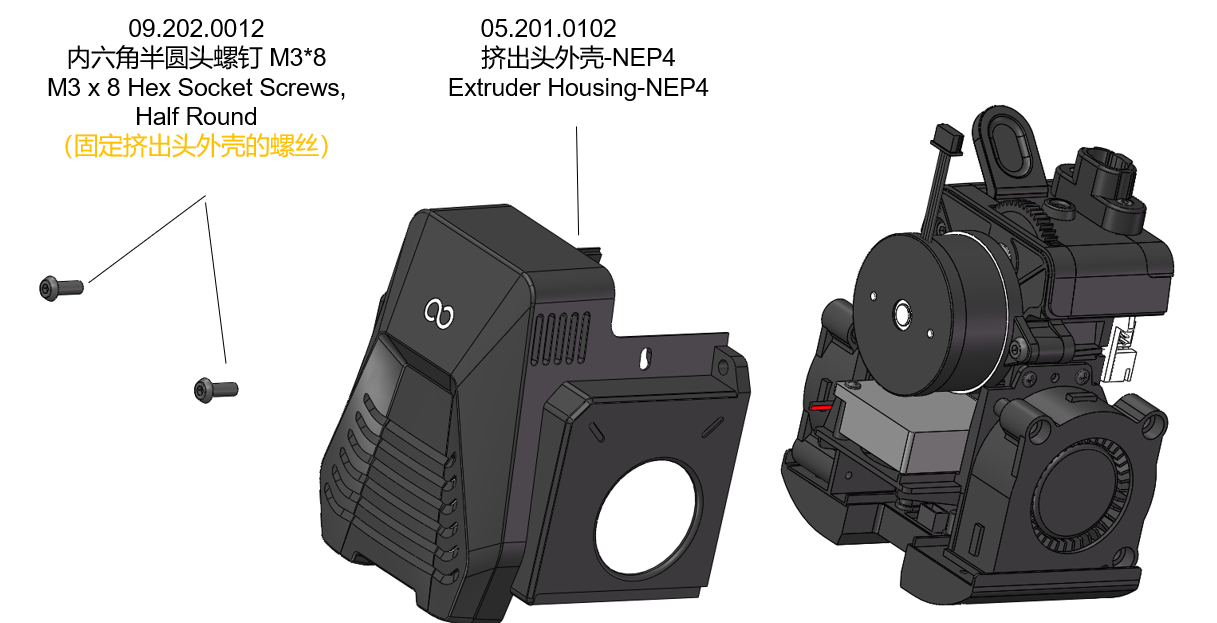

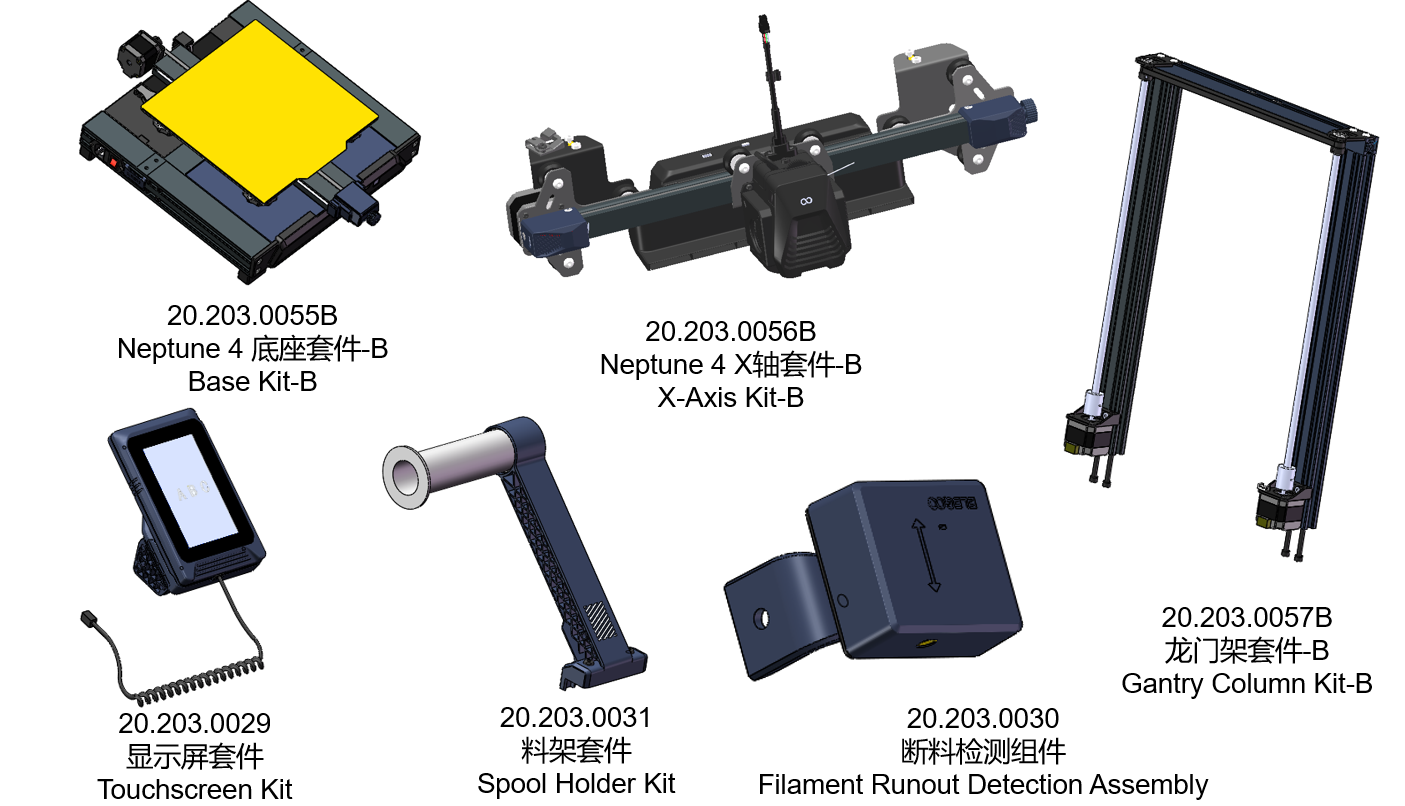

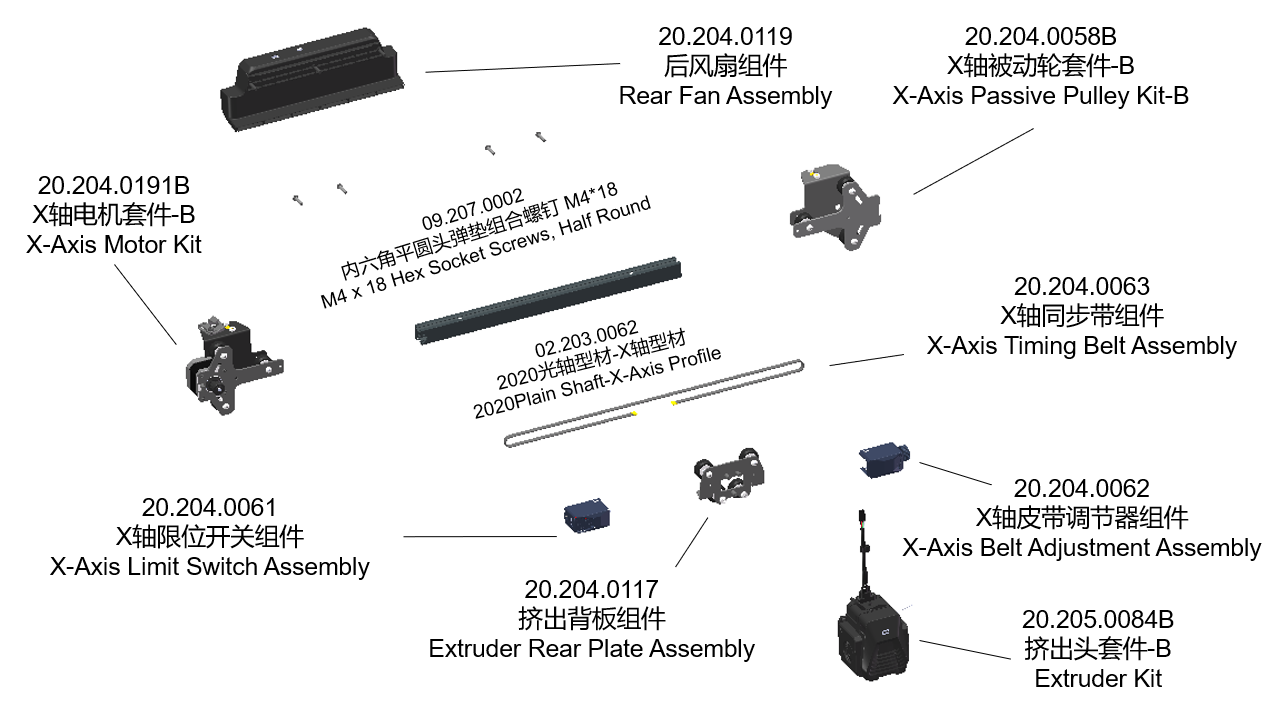

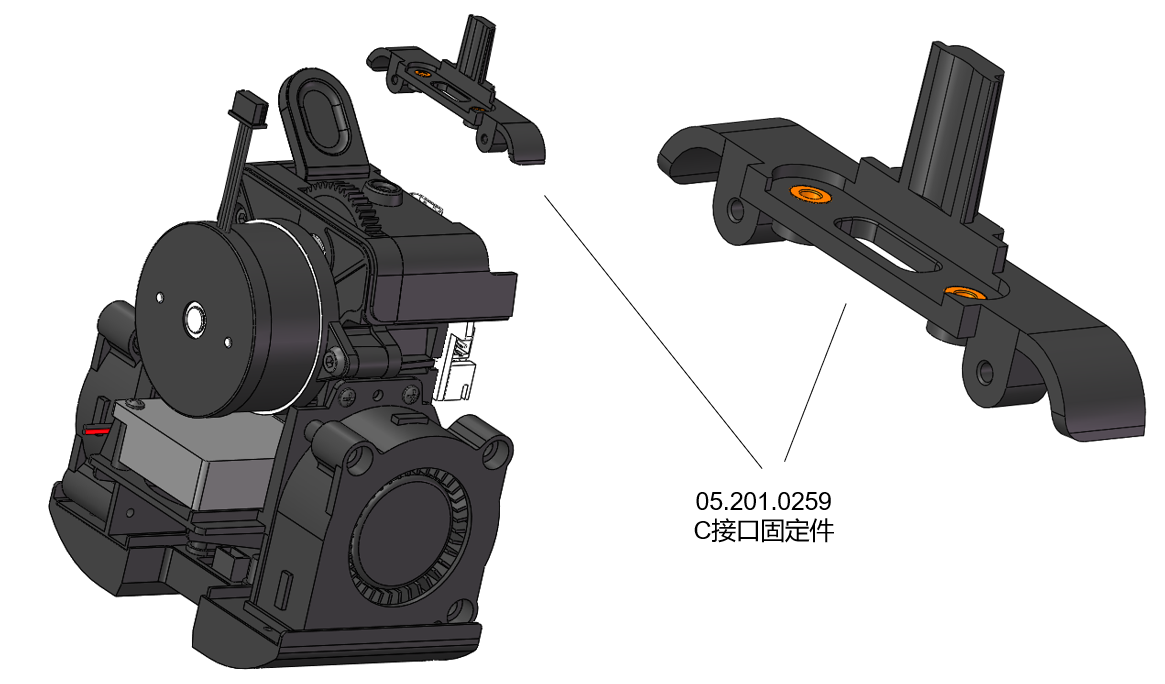

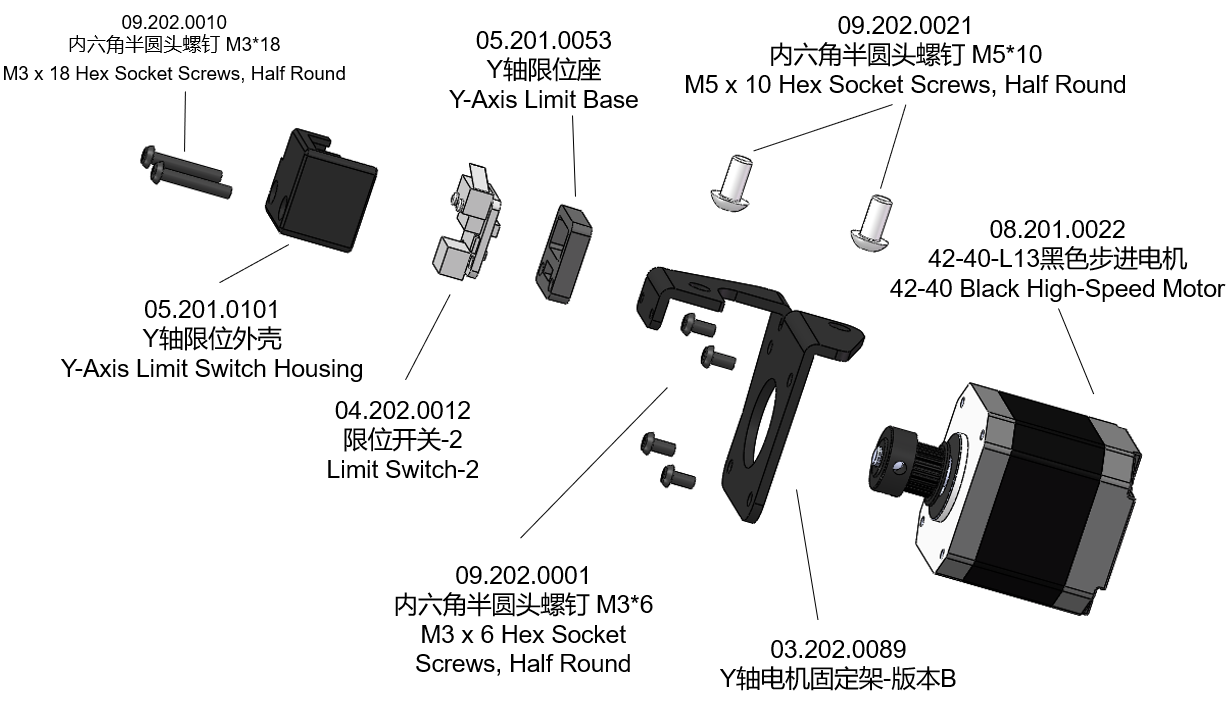

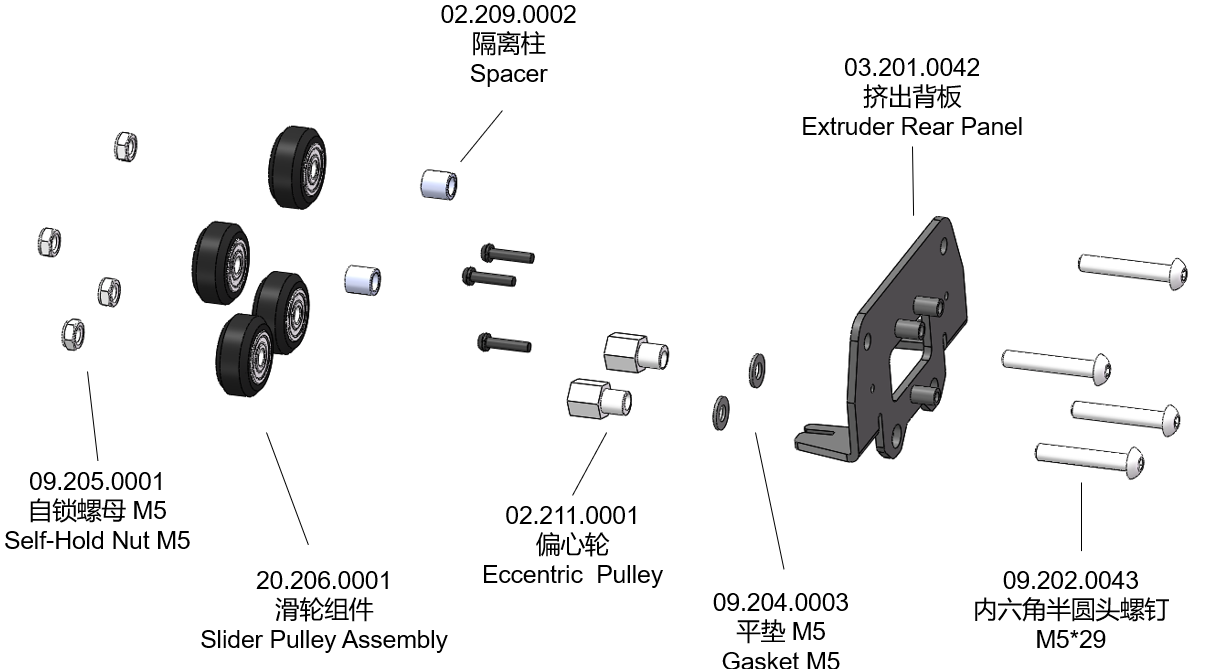

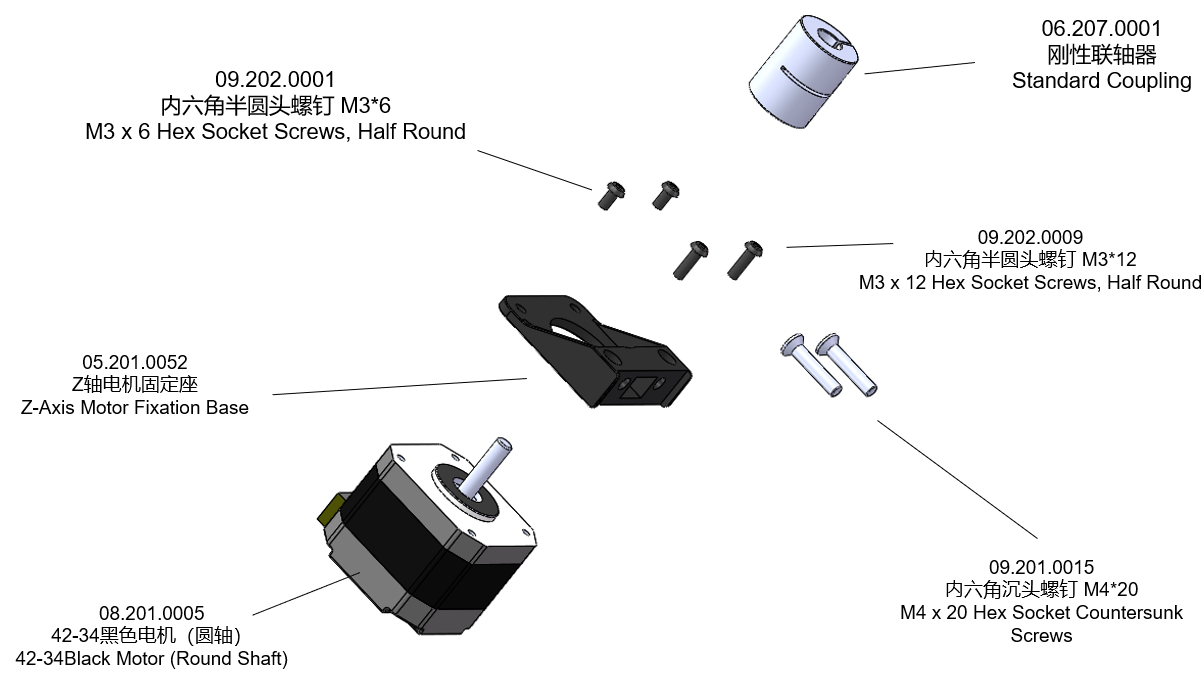

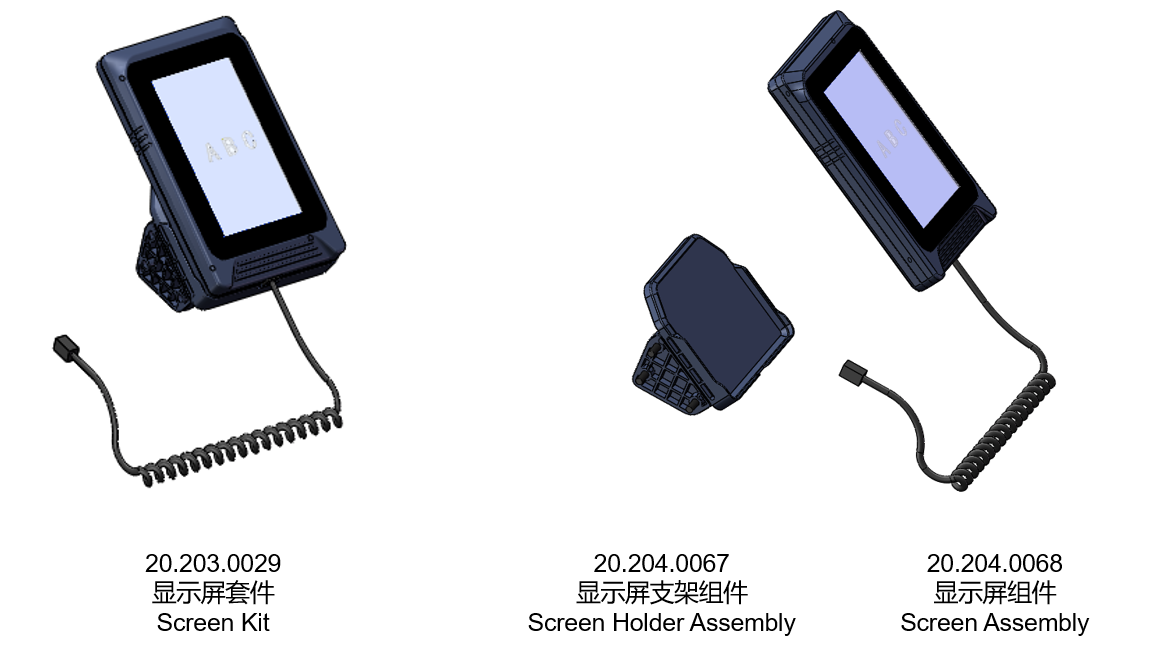

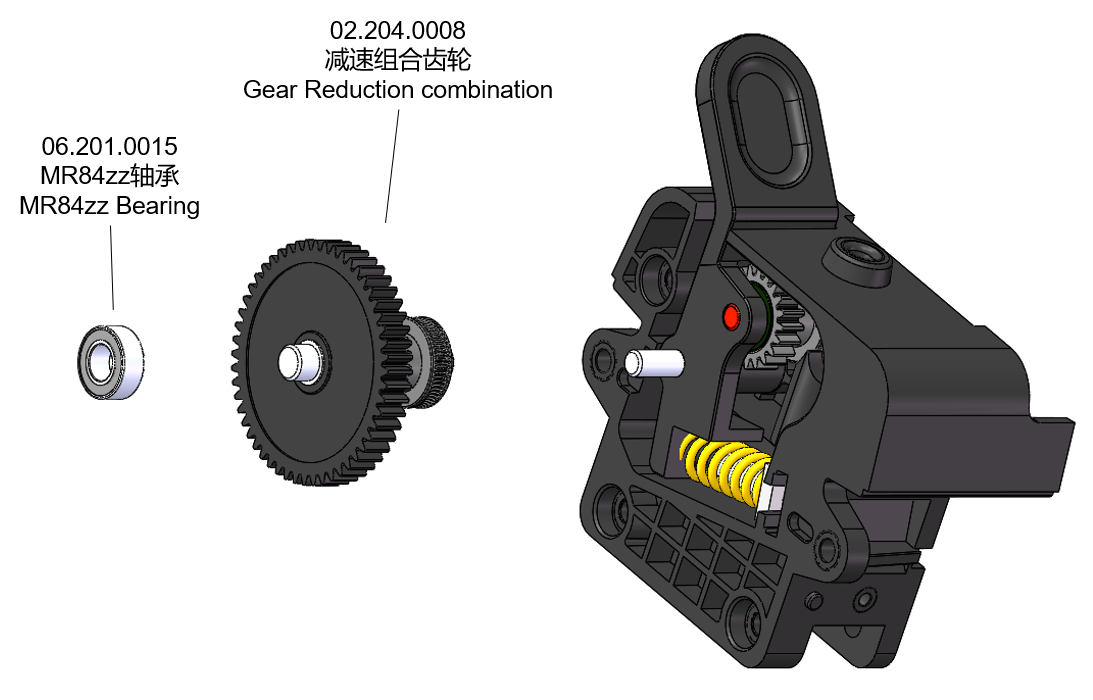

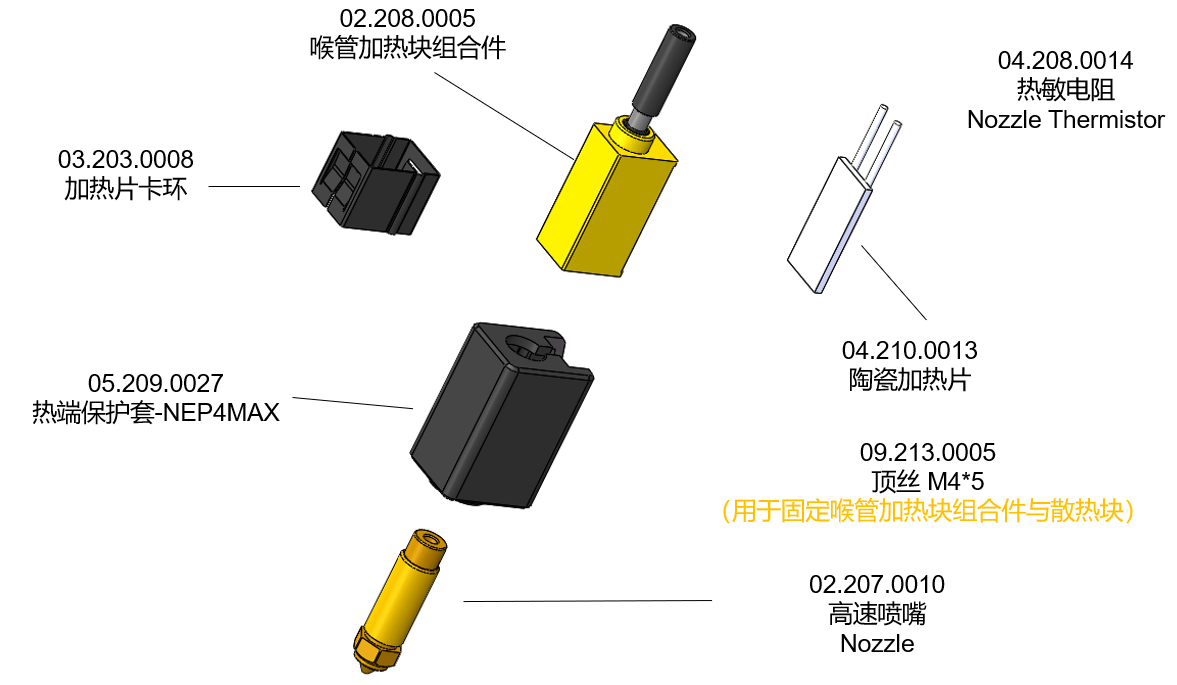

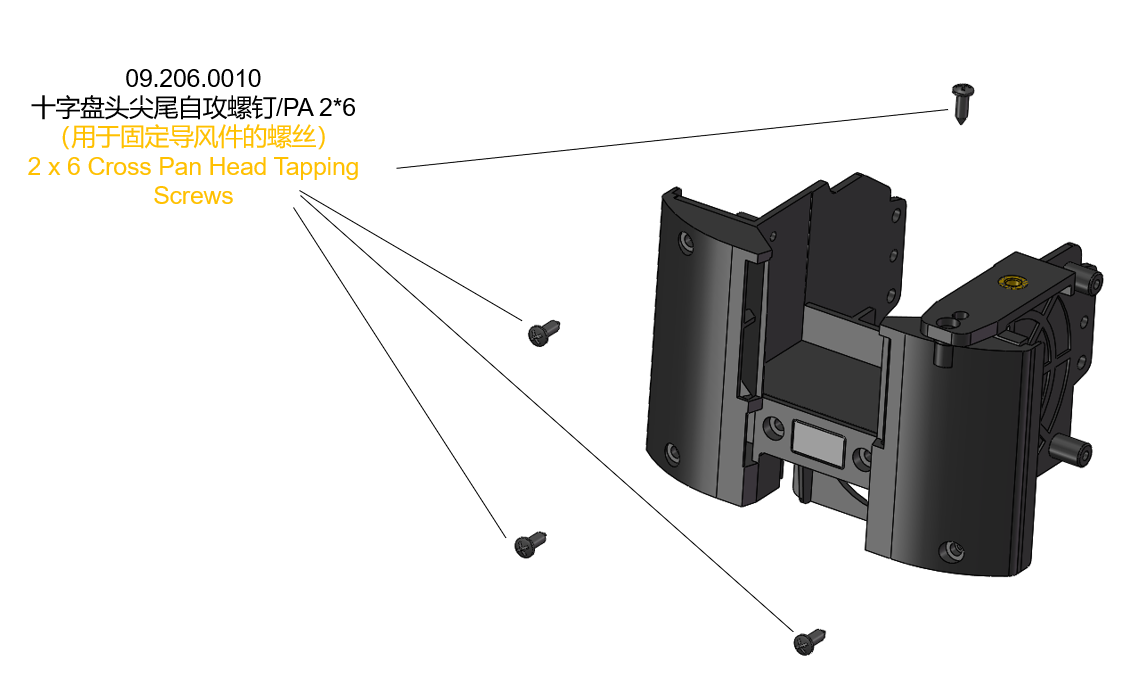

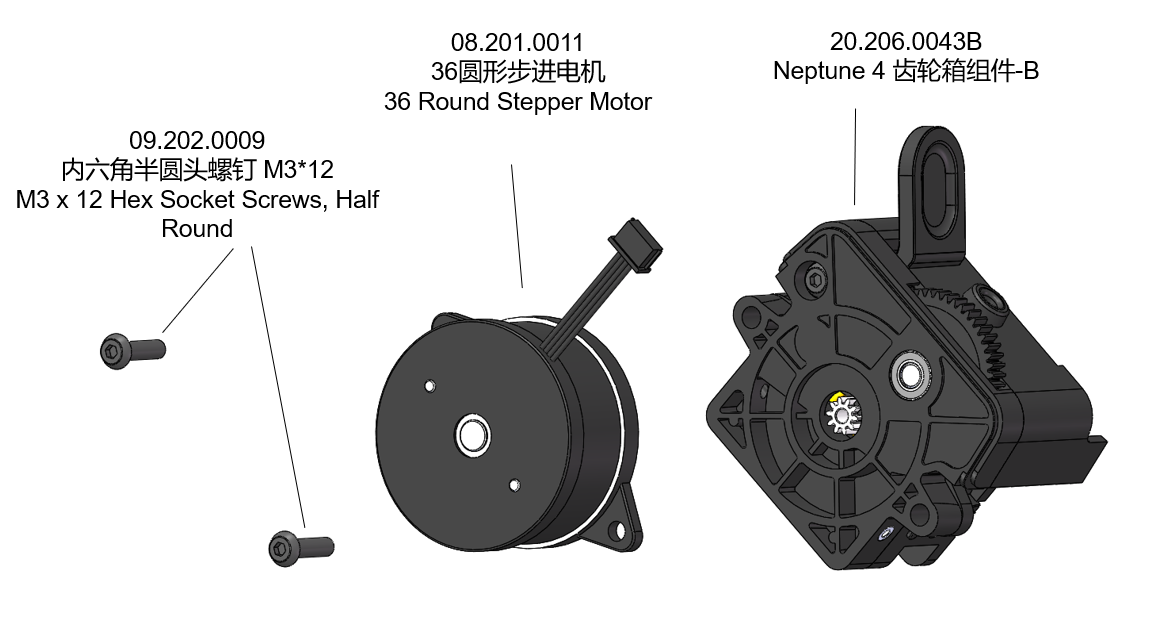

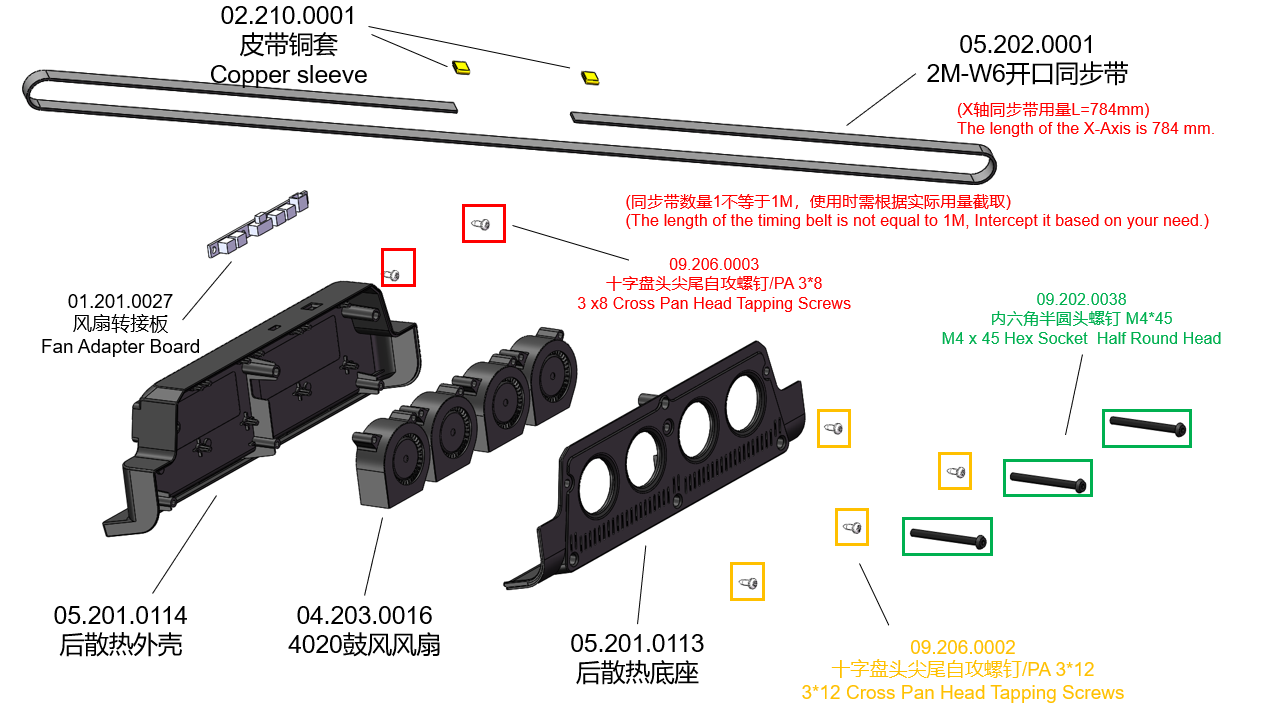

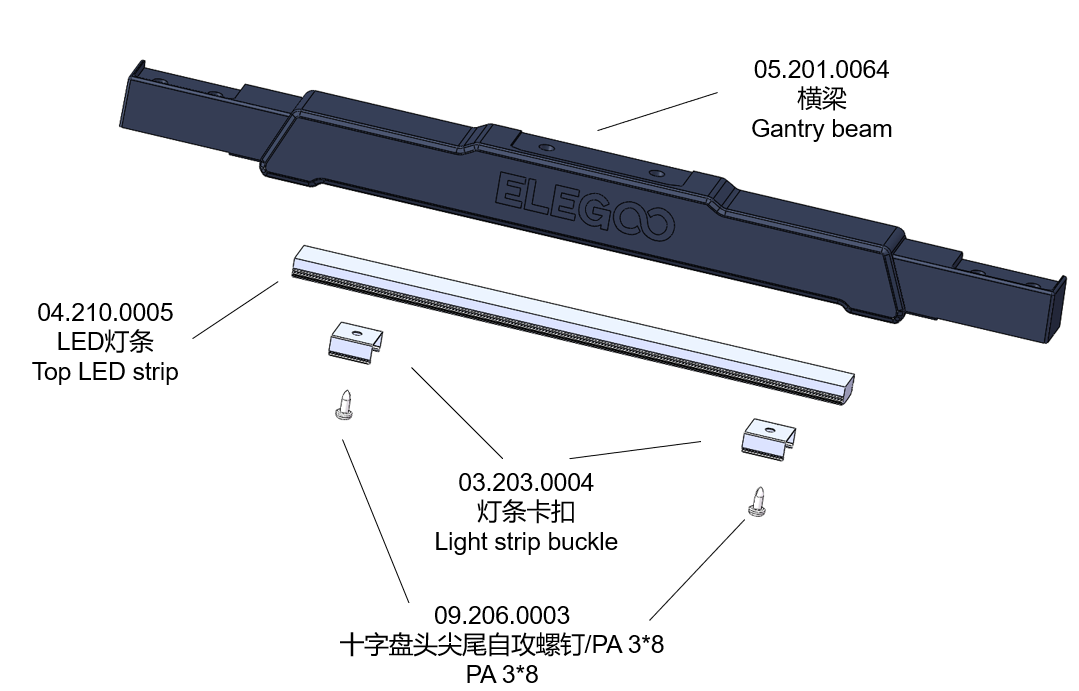

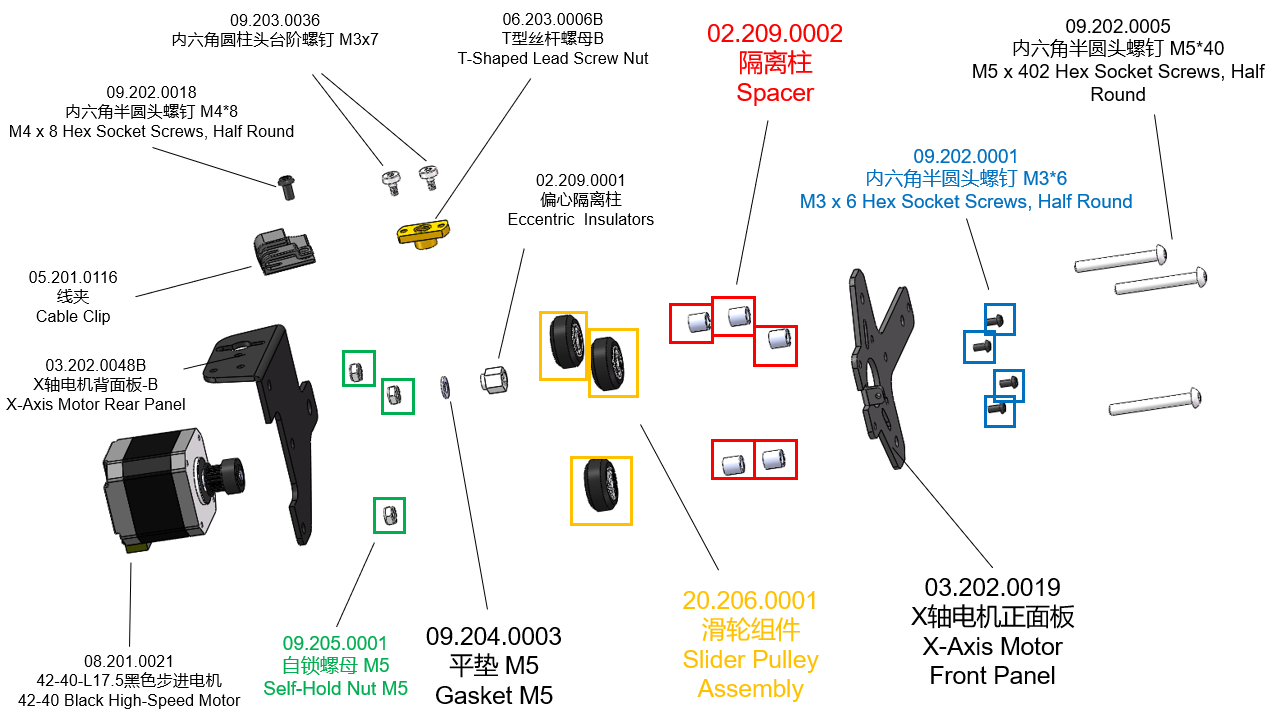

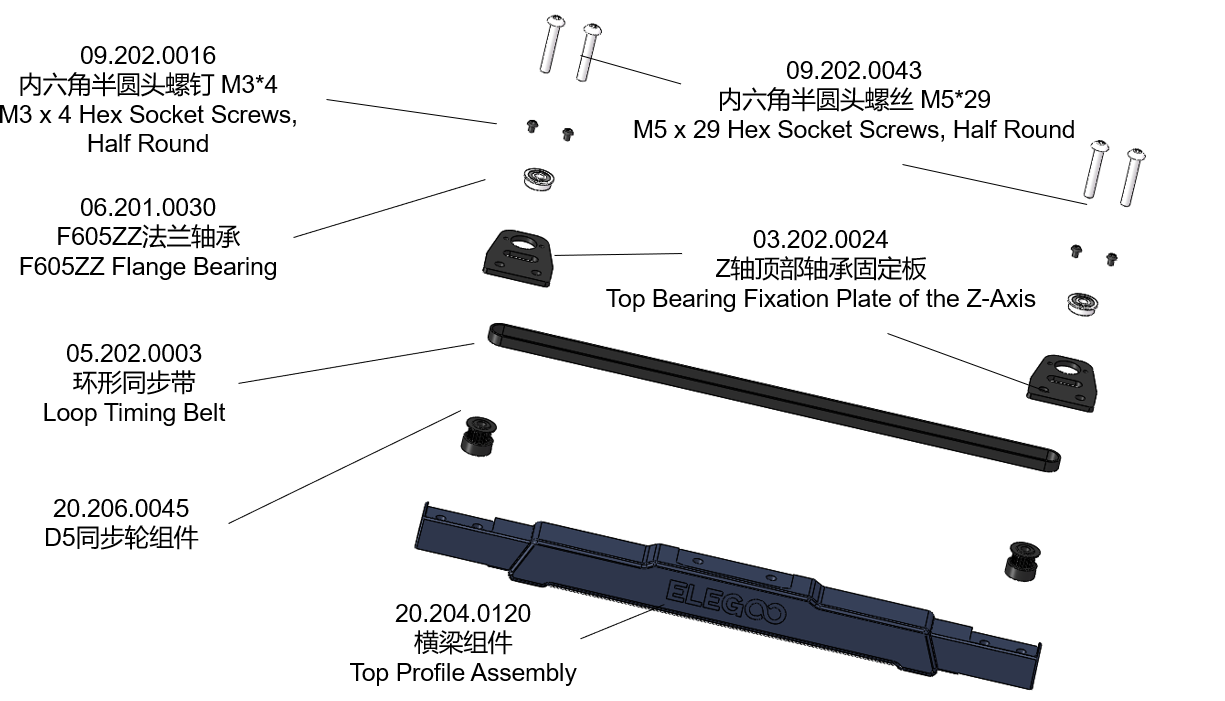

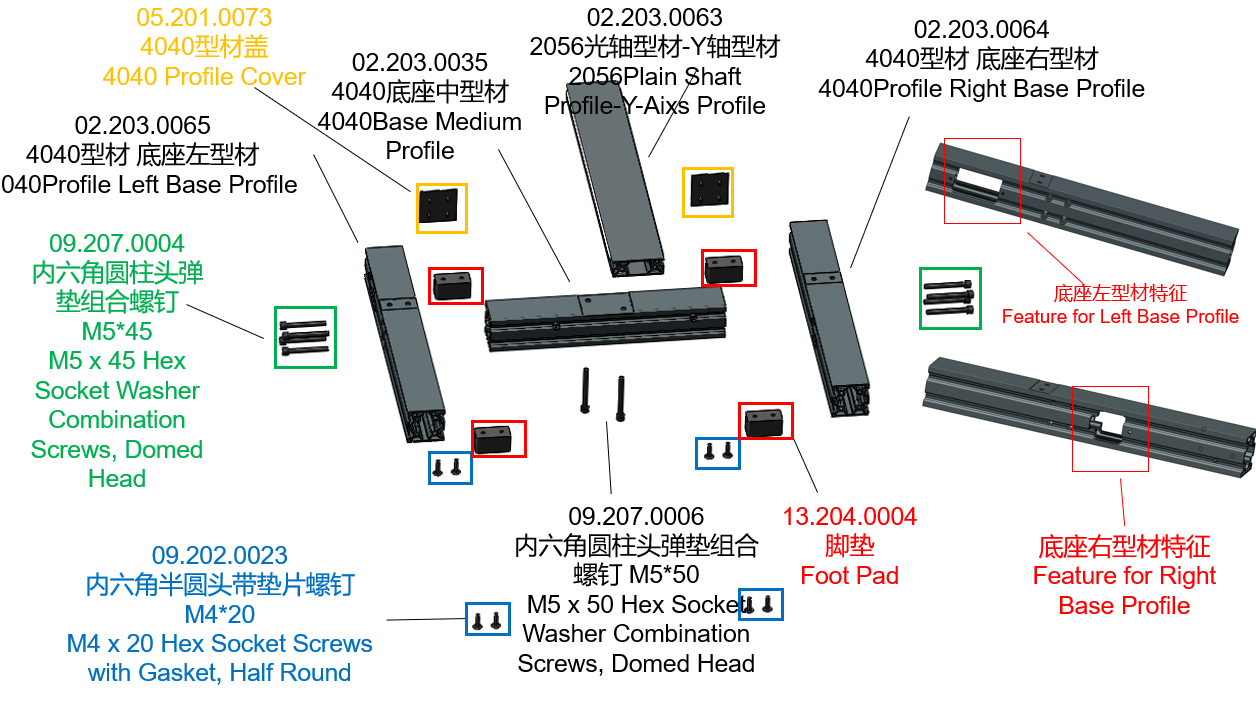

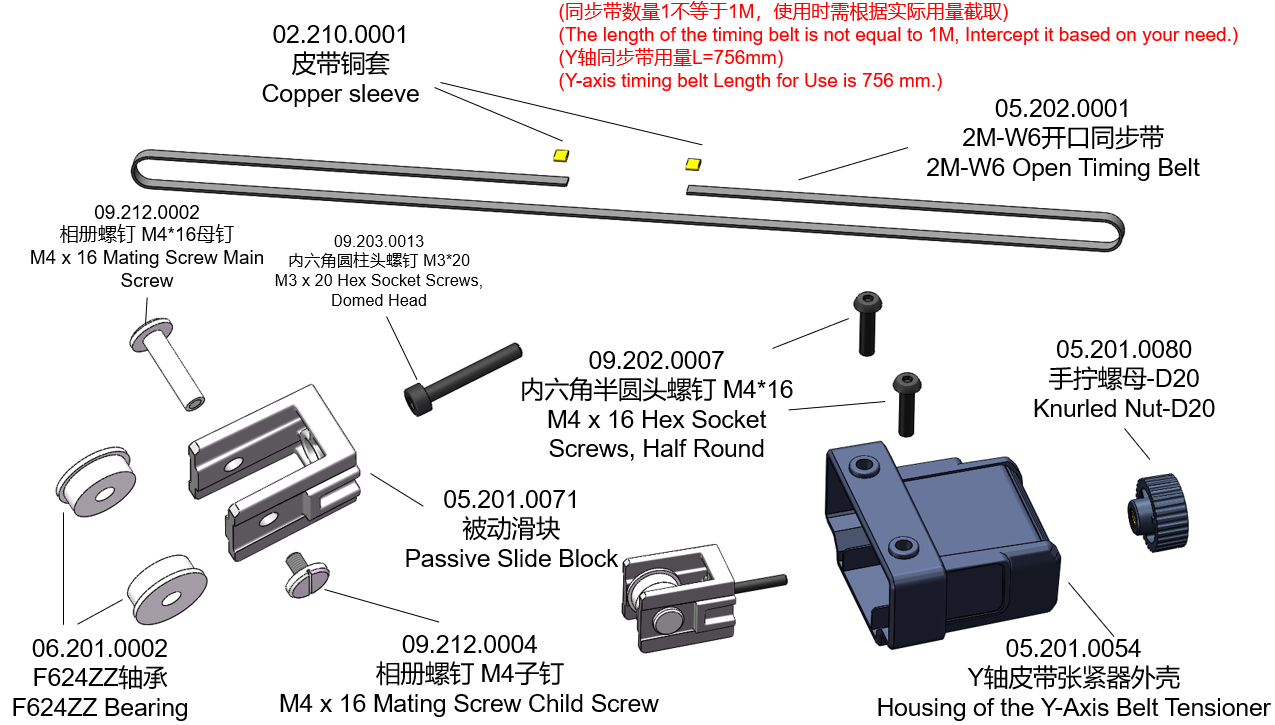

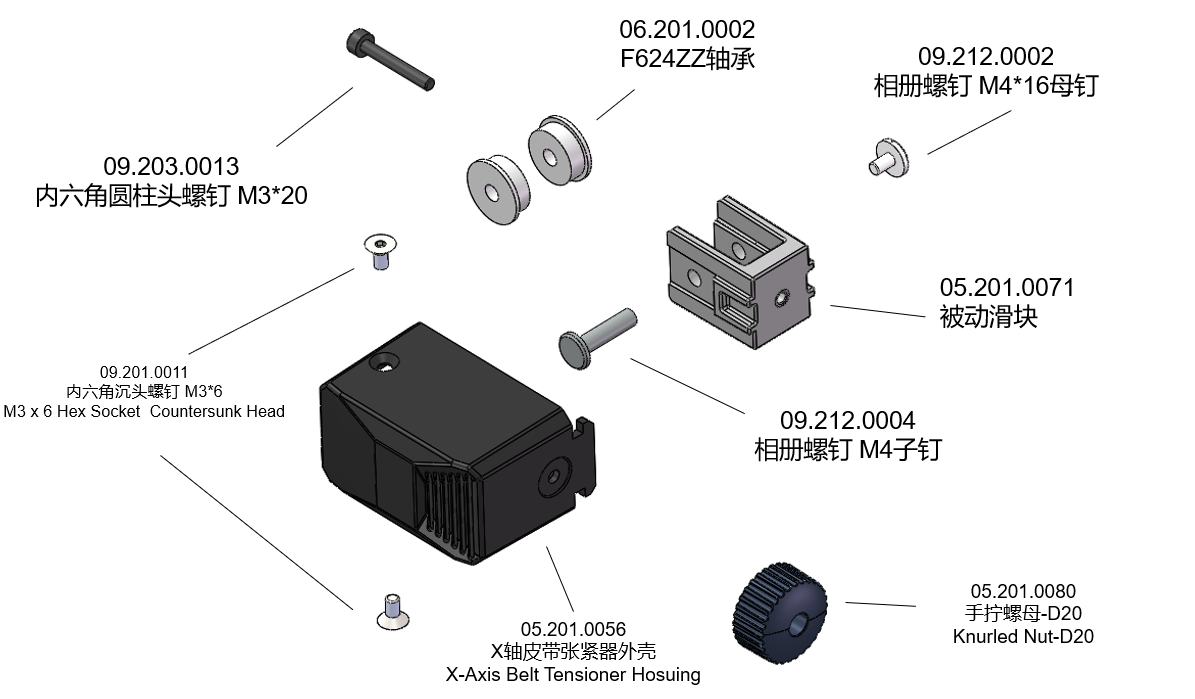

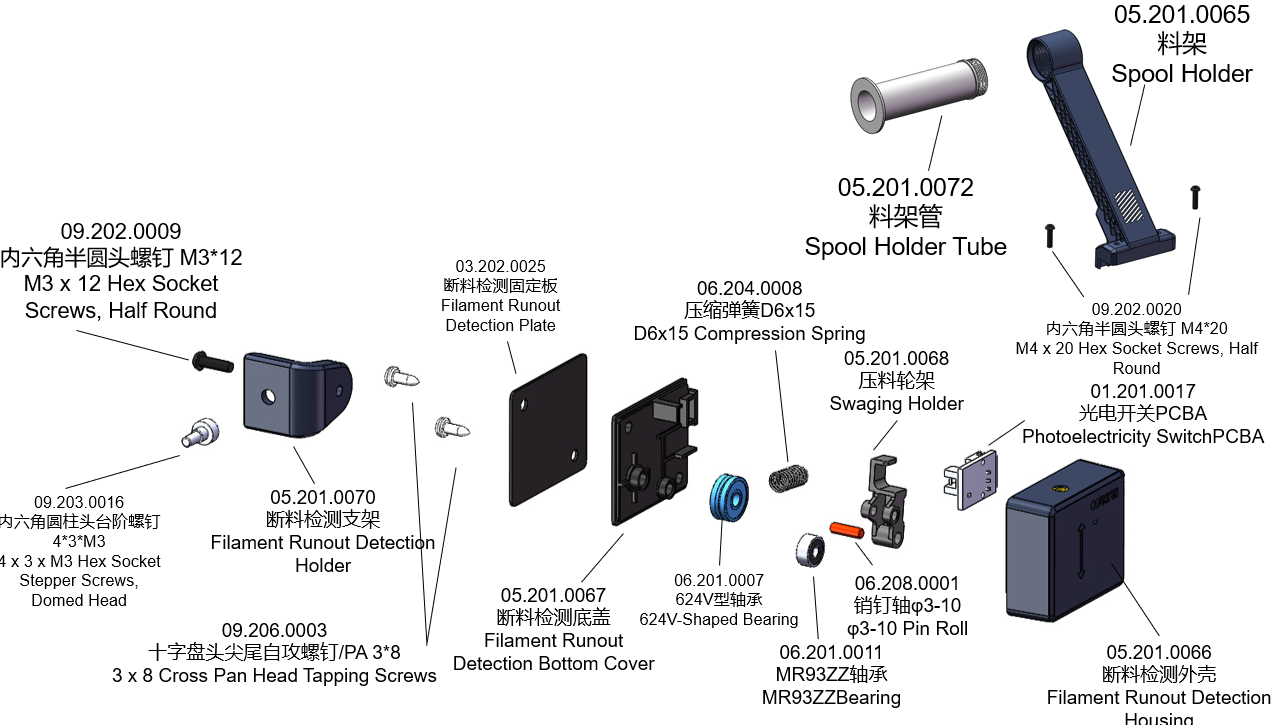

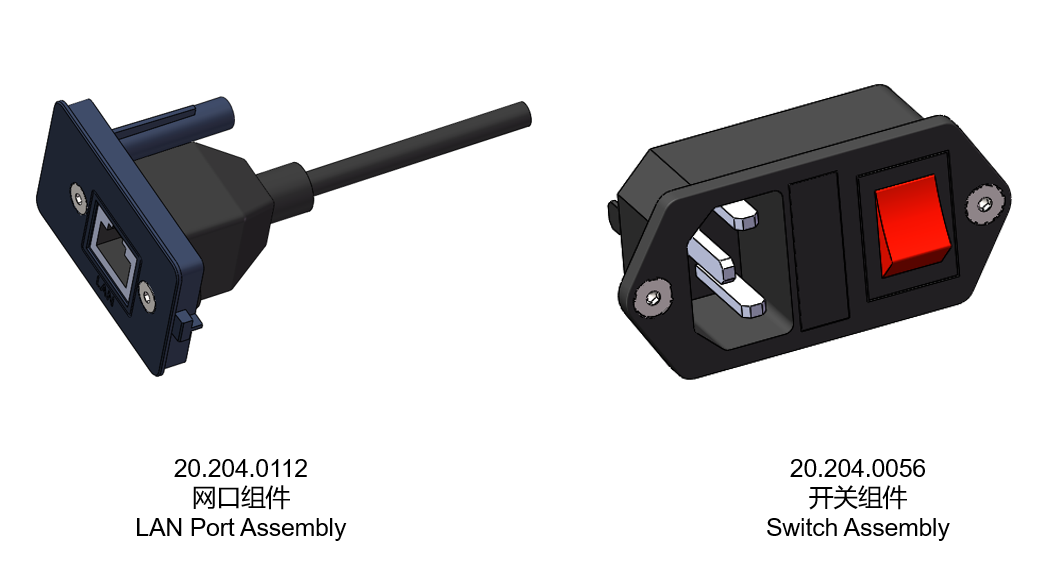

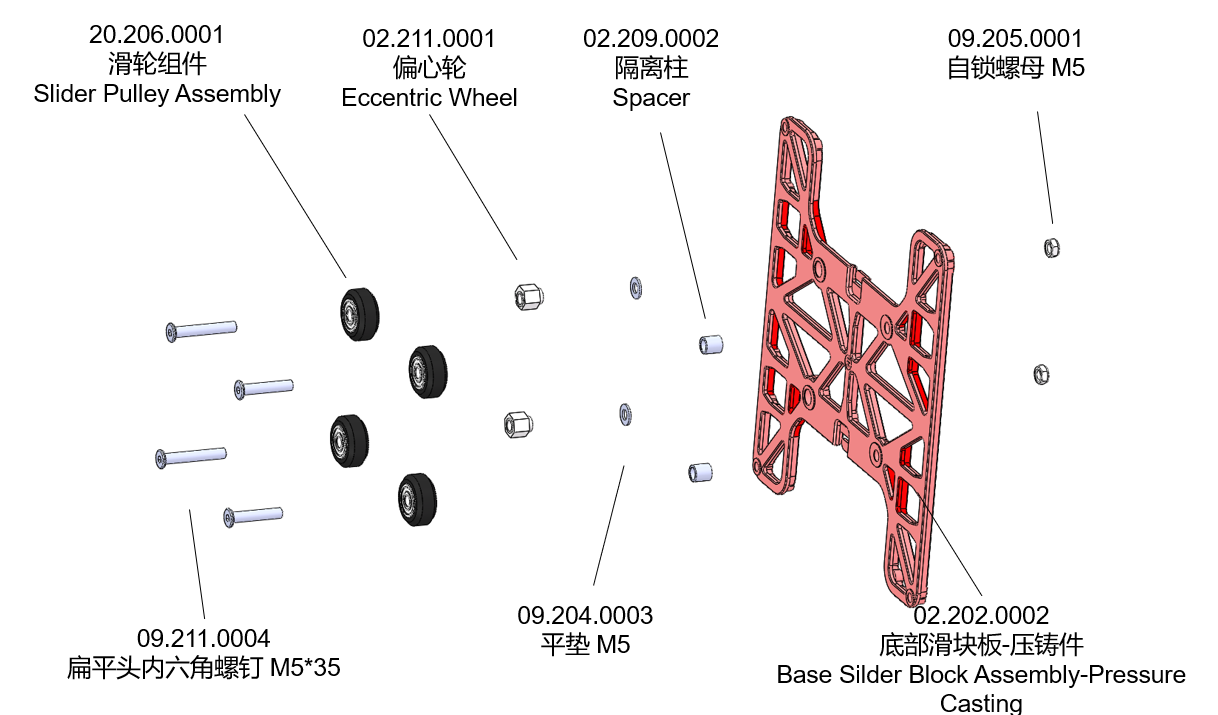

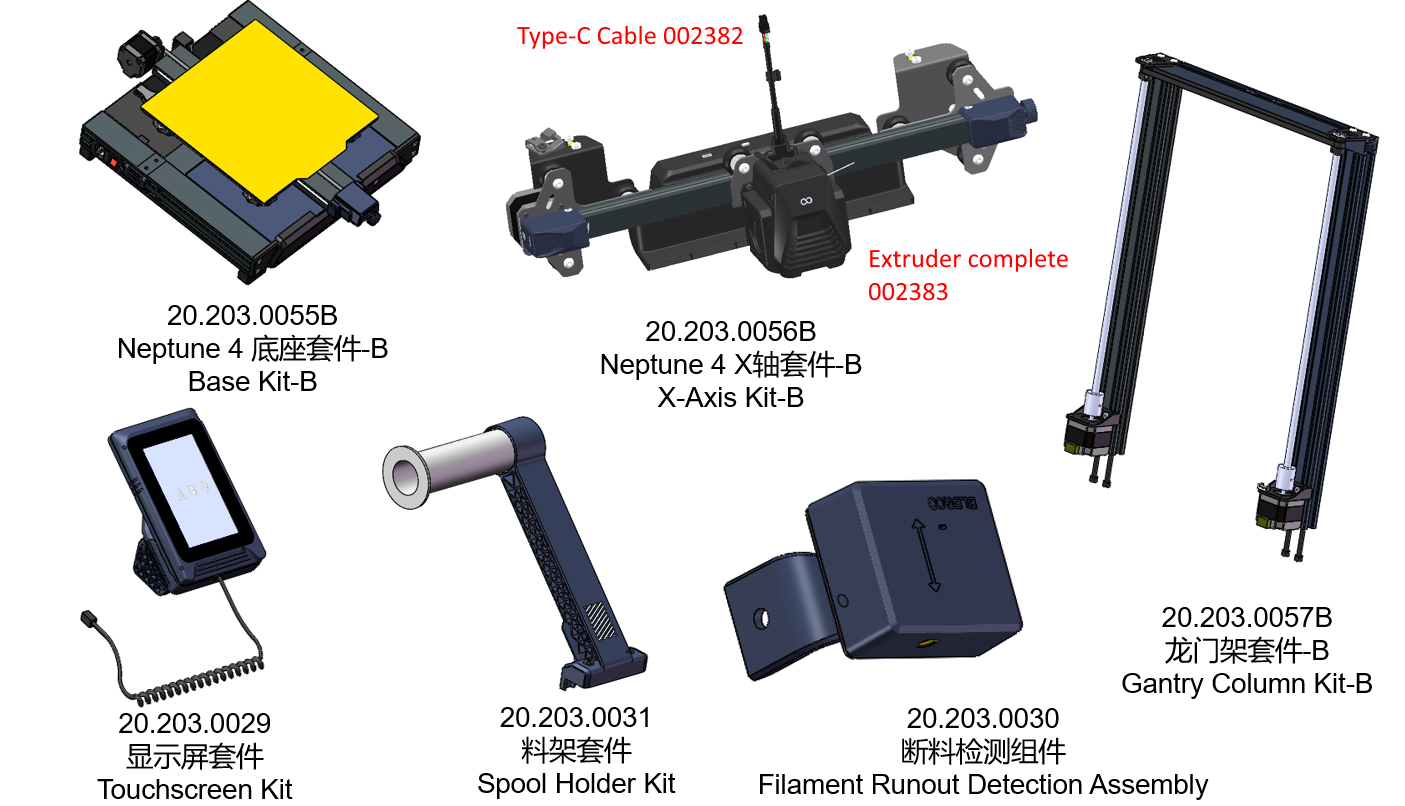

Neptune 4 TL4970 Type-C - Exploded Parts Views

This is a useful reference to see how parts go together and what screws are used to hold them.

A PDF and list of parts we carry are at the bottom of the page.

To replace lost screws, nuts & bolts, look for online vendors of mixed metric screw assortment kits.



Neptune 4TL4970
001407NOZZLE 0.4MM BRASS [TL4970/TL4972]
001408NOZZLE 0.4MM BRASS [TL4974/TL4976]
001409NOZZLE 0.4MM HARDENED [TL4970/TL4972]
001410NOZZLE 0.6MM HARDENED [TL4970/TL4972]
001411NOZZLE 0.8MM HARDENED [TL4970/TL4972]
001412NOZZLE 0.4MM HARDENED [TL4974/TL4976]
001413NOZZLE 0.6MM HARDENED [TL4974/TL4976]
001414NOZZLE 0.8MM HARDENED [TL4974/TL4976]
001415NOZZLE 0.6MM BRASS [TL4970/TL4972]
001416NOZZLE 0.8MM BRASS [TL4970/TL4972]

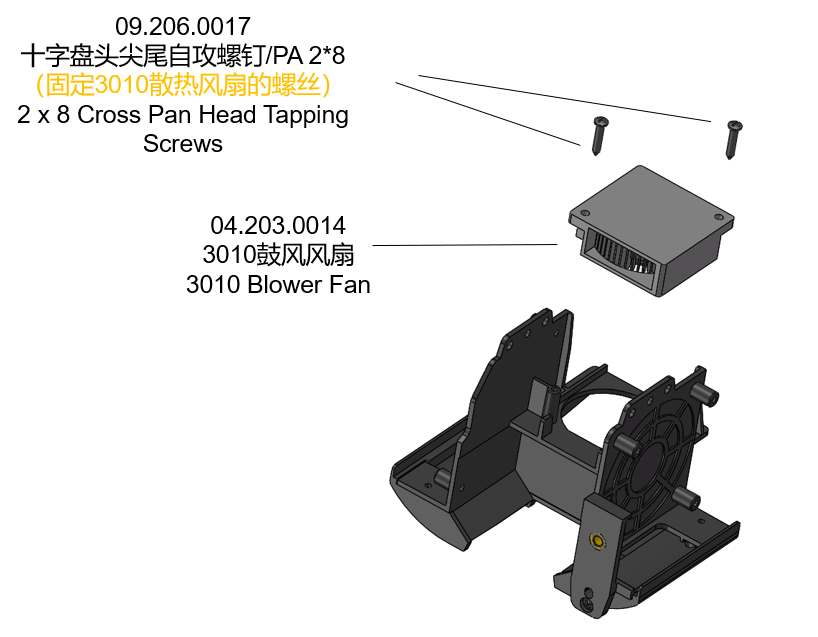

001423BLOWER FAN 3010 [TL4970/TL4972/TL4976]

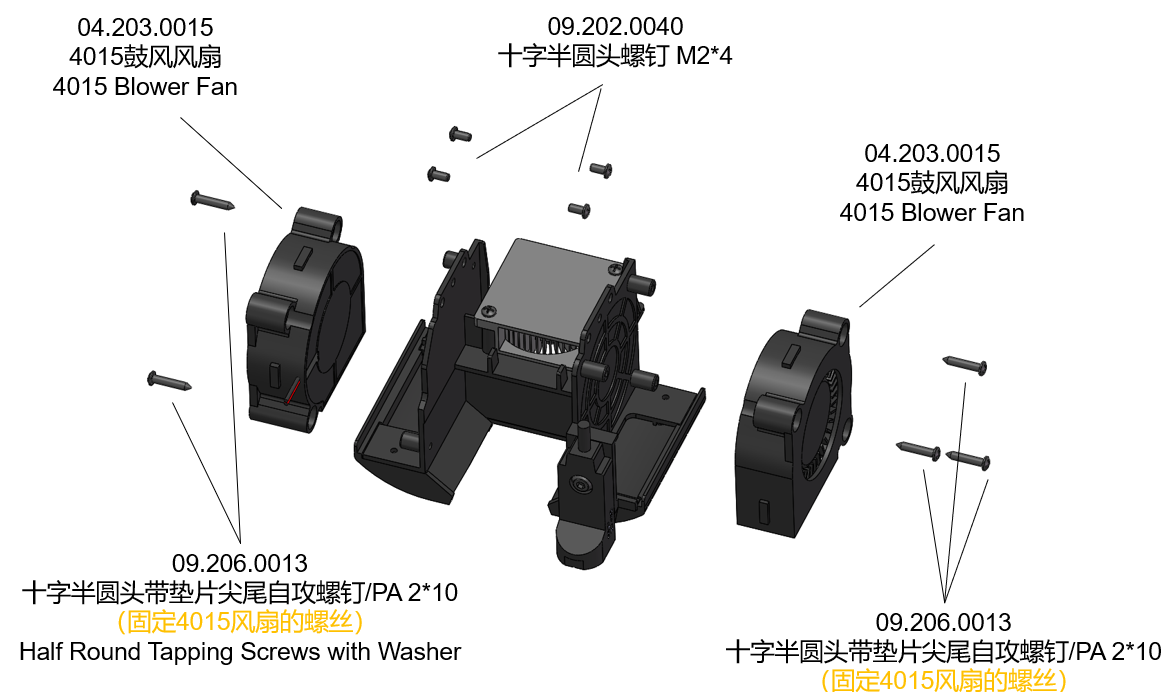

001424BLOWER FAN 4015 [TL4970/TL4972/TL4976]
001432NOZZLE HEATER [TL4970/TL4972]
001433NOZZLE THERMISTOR [TL4970/TL4972]

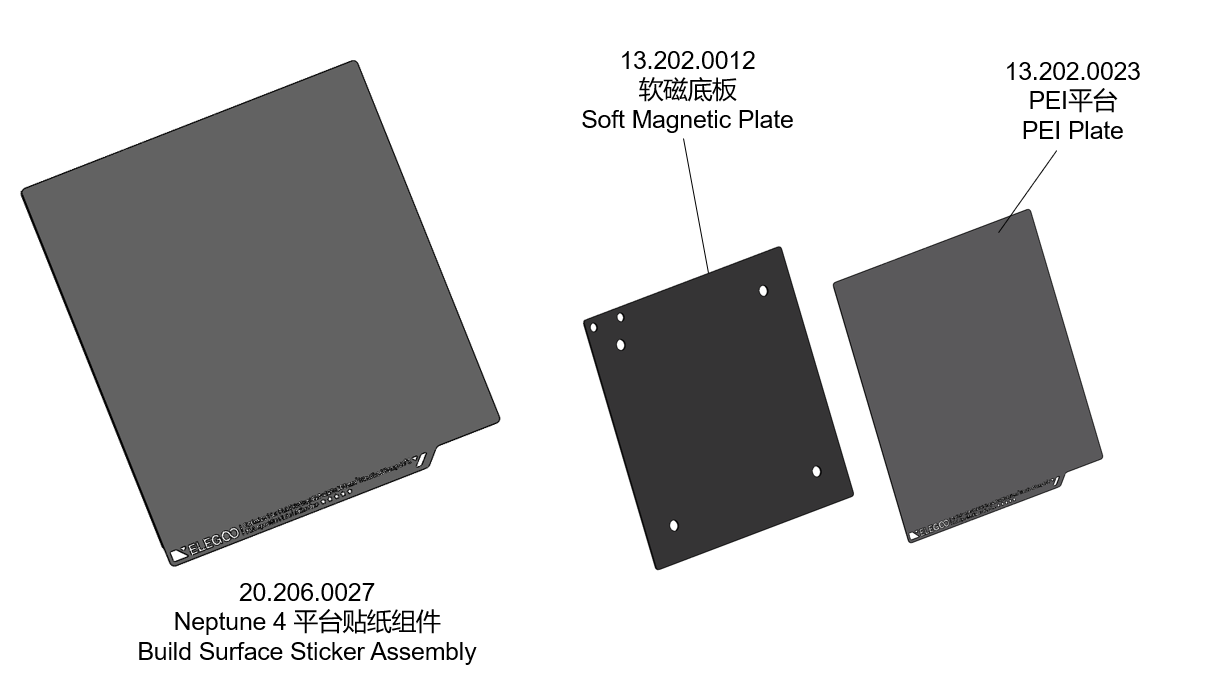

001446PEI PLATFORM [TL4970/TL4972]
001453TIMING BELT KIT X-AXIS  [TL4970]

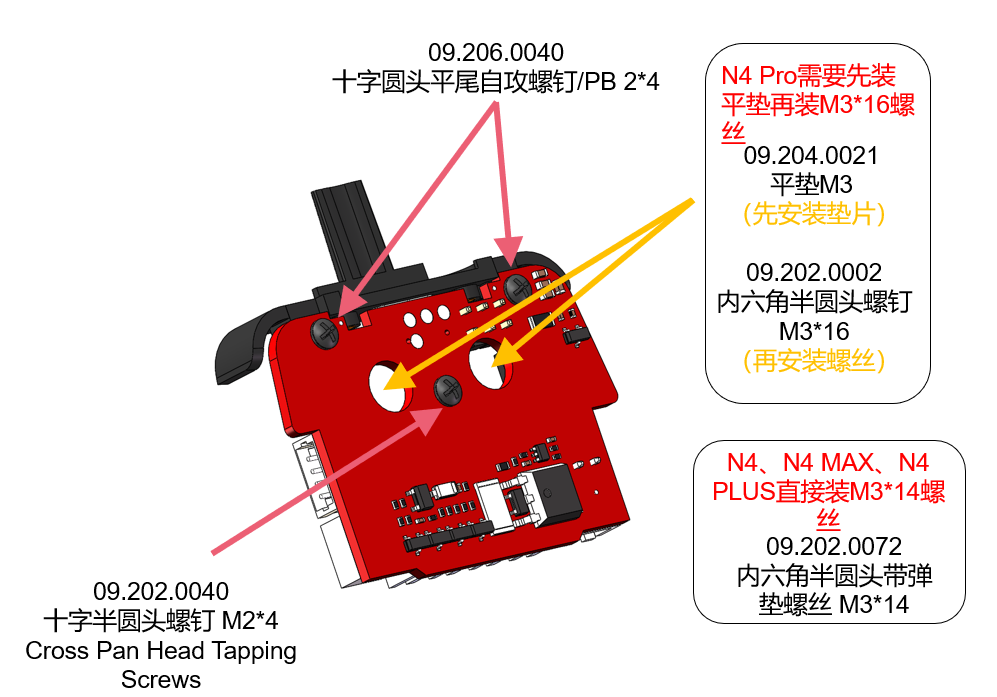

001401EXTRUSION ADAPTER BOARD [TL4972/TL4970]
001406MAINBOARD [TL4970/TL4972]

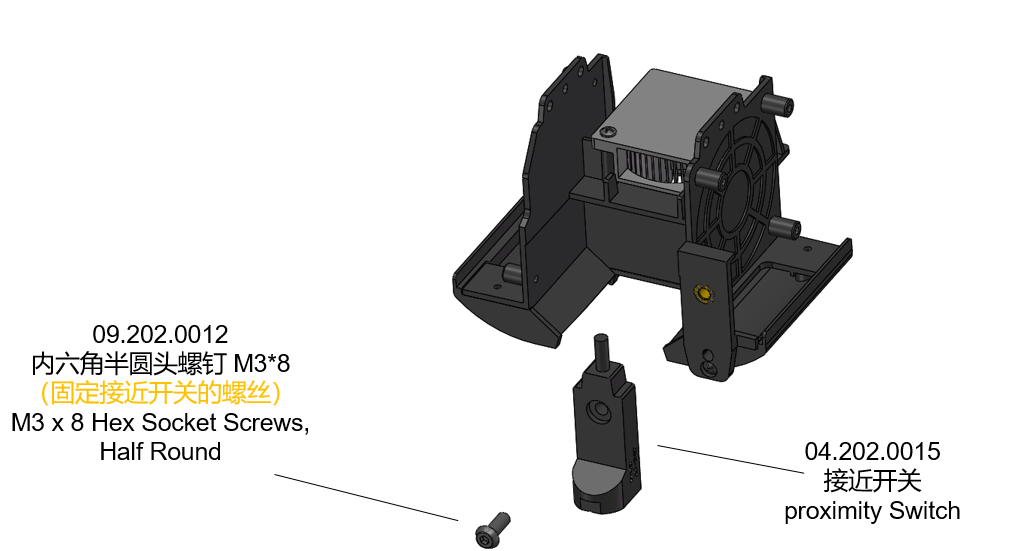

001421SWITCH PROXIMITY [TL4970/TL4972/TL4976]
001465EXTRUDER CABLE KIT [TL4970/TL4972]

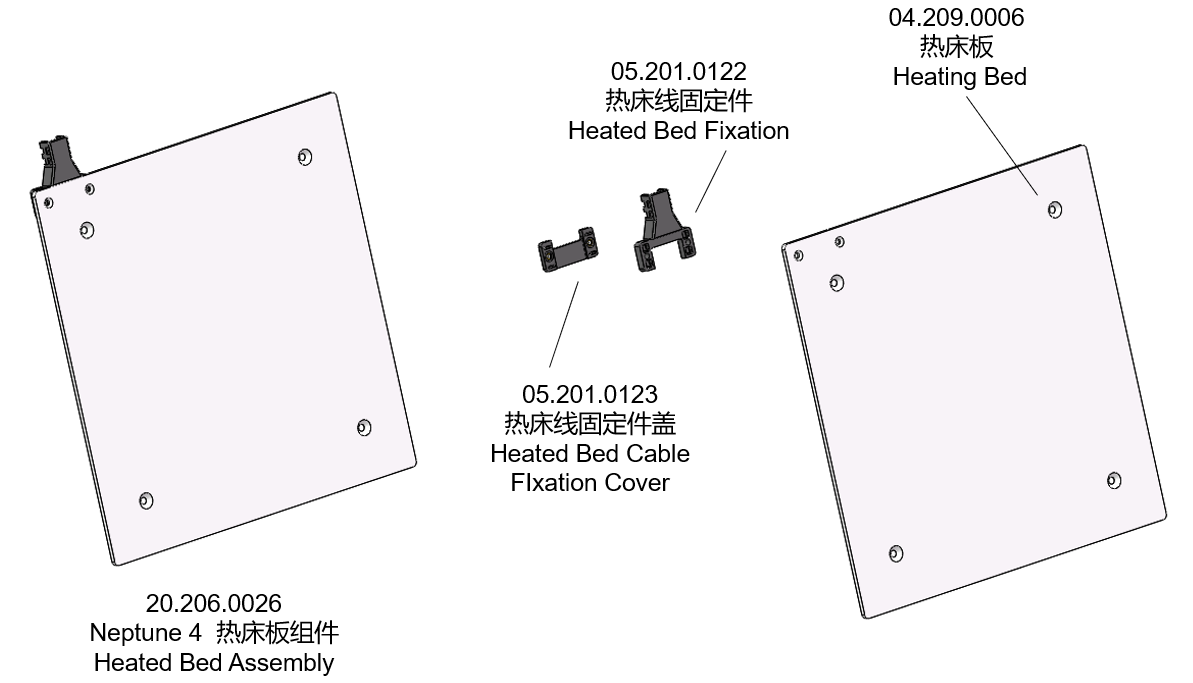

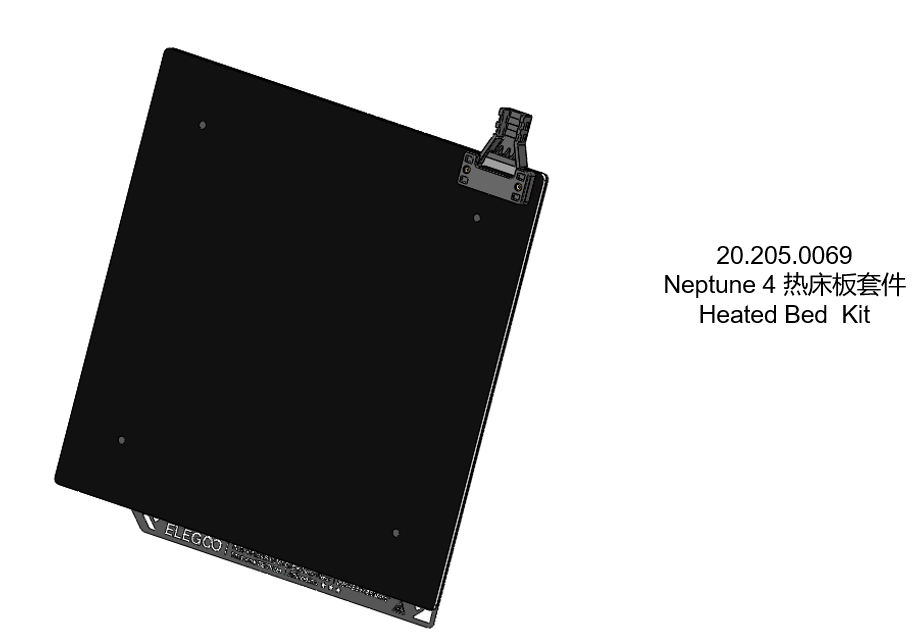

001472HOT BED ASSEMBLY [TL4970]
001640Neptune 4/4 Pro hotend kit [TL4970 TL4972]
001641Neptune 4/Pro Multi-size hardened steel nozzle pack
(3pcs 0.4mm, 1pc 0.6mm, 1pc 0.8mm) [TL4970 TL4972]
001642Neptune 4/pro Multi-size brass nozzle pack
(2pcs 0.2mm, 4pcs 0.4mm, 2pcs 0.6mm, 2pcs 0.8mm) TL4970 TL4972

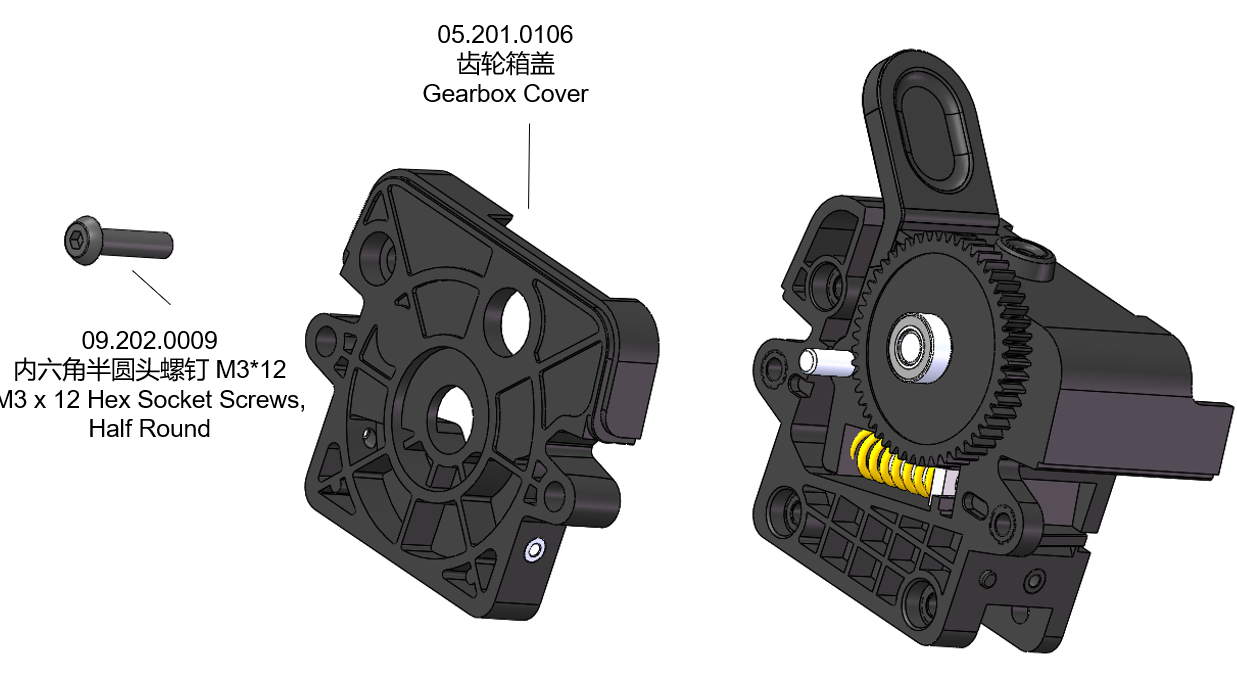

001643Neptune 4 extruder kit TL4970
